Injection molding lifters are essential components that play a pivotal role in the production of complex plastic parts.
As the demand for intricate designs and high-quality molded products grows, understanding lifter design becomes increasingly important for manufacturers and engineers.
This guide provides a comprehensive overview of injection molding lifters, covering their functions, types, key components, and critical design considerations.
What Is Injection Molding Lifter?

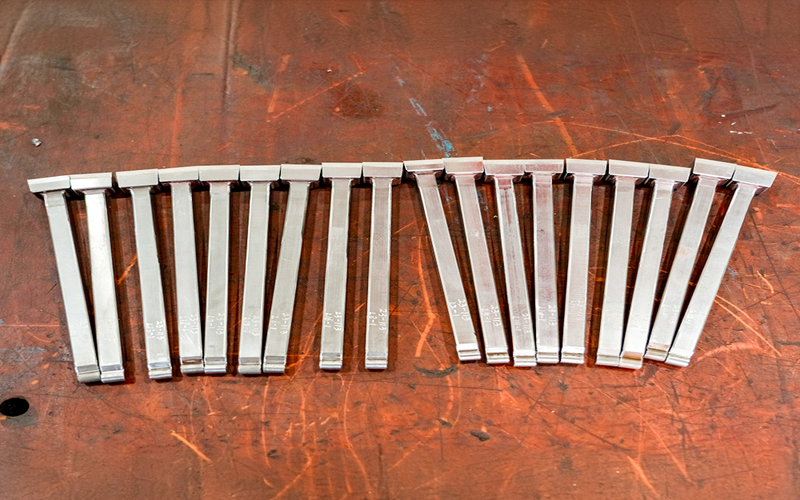

An injection molding lifter is a specialized mechanical component used in the injection molding process to facilitate the ejection of molded parts with complex internal features or undercuts.
Positioned within the mold cavity, the lifter moves in a precise angled or vertical motion aligned with the mold opening direction, allowing it to push the molded part out smoothly without causing damage.
This lifting mechanism is essential for parts with intricate geometries such as internal threads, deep rib details, or other internal undercuts that require careful handling during ejection.
The lifter moves corresponds precisely to the internal undercut design, ensuring smooth operation and preventing part deformation.
Designed to resist injection pressure and withstand the forces exerted by molten material during the injection molding process, lifters contribute to high-quality part production.
Types Of Injection Molding Lifters
Injection molding lifters come in various types, each designed to address specific molding challenges and part geometries.
Integral Lifter
Integral lifters are designed as a single, unified component built directly into the mold structure.
This design offers superior durability and precision, making them ideal for high-volume injection molding processes where consistent performance and reliability are paramount.
Non Integral Lifter
Non integral lifters consist of separate components that are added to the mold rather than being built into the mold structure itself.
This design offers greater flexibility, allowing for easier replacement, adjustment, and maintenance of the lifter components.
Cylindrical Lifter
Cylindrical lifters are one of the most commonly used types of injection molding lifters due to their simple and efficient design.
Characterized by their round, blade-like shape, these lifters move vertically within the mold cavity to release molded parts that have straightforward internal features.
Cylindrical lifters are typically made from hardened steel or other high-quality materials to resist injection pressure and wear resistance during the injection molding process.
T Shaped Lifter
T-shaped lifters are specifically designed for larger molding surfaces and parts with intricate internal undercuts that require enhanced stability and precise control during the ejection process.
Their robust construction and precise movement, often guided by components like angled guide pins and supported by external springs, make them essential in injection molding processes that involve complex shapes and require reliable release of internal undercuts.

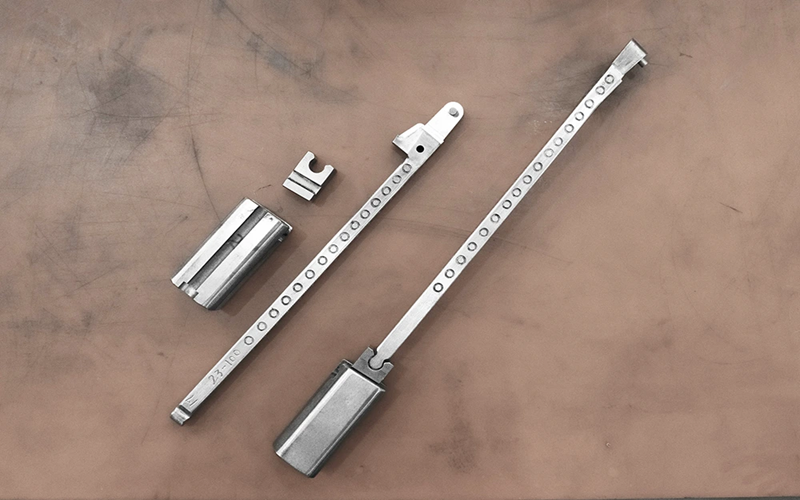

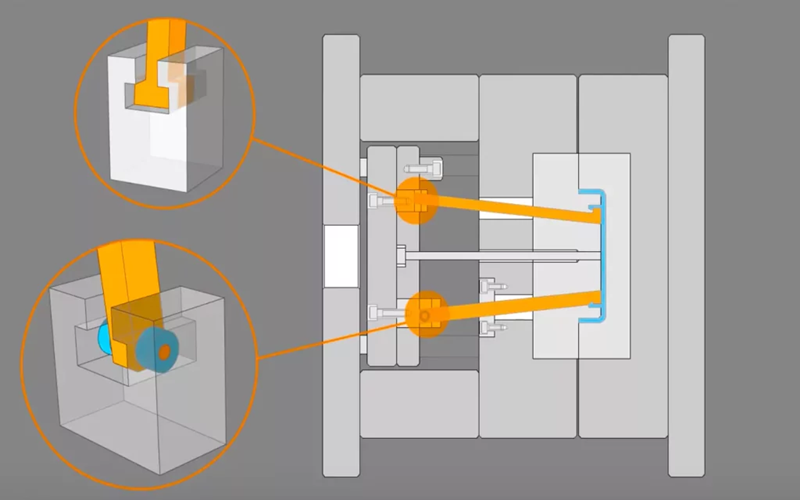

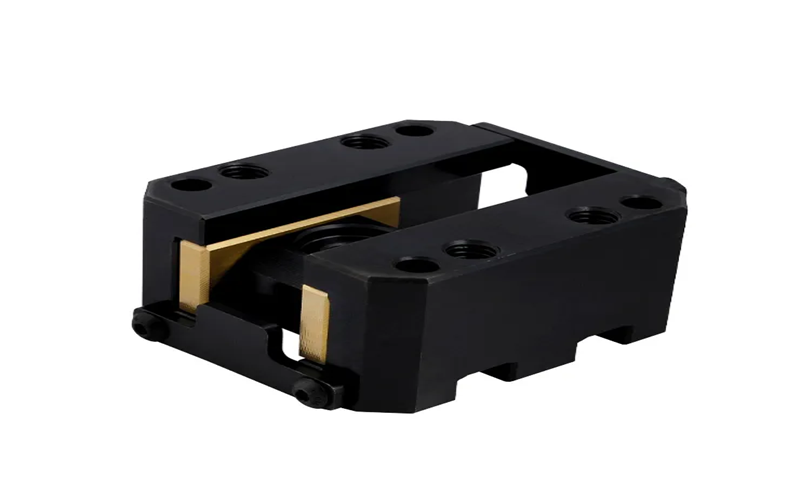

Key Components Of Lifter Mechanism
The lifter mechanism in injection molding includes key components that facilitate part ejection.
The lifter rod, which can be blade-like or pin-like, is the primary component responsible for injection molding press pushing the part out of the mold cavity after molding using an injection molding press, including the ejector pin.
Another crucial component is the ejector plate, which moves in sync with the lifter rod to ensure smooth ejection of the molded part.
It is supported by a retainer plate that holds the lifter components and additional parts securely in place, providing stability during the ejection process and ensuring efficient operation of the entire ejector system.
This coordinated mechanism is essential for maintaining precision and reliability in the injection molding process, especially when handling complex internal features and undercuts.
A locking mechanism is essential in lifter design to ensure the lifter moves only when needed, preventing premature ejection or damage to the molded part.
Standard Requirements For Injection Molding Lifter Design
Designing an effective injection molding lifter requires adherence to several standard requirements to ensure reliable performance and longevity.
First, the lifter must have precise shut off surfaces with a minimum draft angle—typically around three degrees—to facilitate smooth movement without causing damage to the molded part or the mold itself.
The lifter’s travel angle should not exceed 11 degrees unless special design considerations are made, maintaining optimal alignment with the mold opening direction.
Additionally, the lifter must be constructed from high-quality, wear-resistant materials such as hardened steel to withstand the high injection pressure and repeated mechanical stresses during the injection molding process.
Proper clearance between the lifter and the molded part is essential to prevent binding or sticking, while the incorporation of return mechanisms like springs or hydraulic systems ensures the lifter resets correctly after each ejection cycle.
Finally, the design should accommodate integration with the ejector system, guaranteeing synchronized movement with ejector pins and the ejector plate for smooth part release.
Design Considerations For Injection Mold Lifters
When designing injection mold lifters, several key factors must be carefully evaluated to ensure optimal performance and durability.
Material Selection
Choosing the right materials for injection molding lifters is critical to ensure durability, heat resistance, and reliable performance throughout the injection molding process.
High-quality, hardened steel or tool steel are commonly used due to their excellent wear resistance and ability to withstand the high injection pressure exerted by molten material.
These materials help maintain the integrity of the lifter components, preventing deformation and premature wear that could compromise the smooth part ejection.
Additionally, selecting materials compatible with the injection molding sliders and resistant to corrosion and fatigue extends the lifespan of the lifter mechanism, reducing maintenance frequency and costs.
Position
Proper positioning of the injection molding lifter within the mold cavity is essential to ensure efficient and damage-free ejection of molded parts.
The lifter must be strategically placed to correspond with internal undercut features and complex shapes that require specialized release mechanisms.
Accurate alignment, often achieved with the use of two angle pins, helps maintain the correct path of vertical movement and prevents issues such as binding or sticking during the ejection process.
Lifter Geometry
The geometry of an injection molding lifter is a critical factor that directly influences the efficiency and quality of the ejection process.
The lifter’s shape and size must precisely match the internal features of the molded part to ensure smooth release without causing damage or deformation.
Incorporating features such as appropriate shut off surfaces and carefully calculated angles allows the lifter to effectively release internal undercuts and complex shapes.
Conclusion
The design of injection molding lifters is crucial to the success of the injection molding process. Thoughtful considerations, such as material selection—especially choosing the right slide material—and proper placement significantly enhance the efficiency and quality of part ejection.
Optimizing the lifter to effectively interact with the entire molding surface ensures smooth operation and reduces wear.
Lifter design must account for the mold design intricacies, including features like slide details and slide foot dimensions, which influence the lifter’s movement and stability.
The process involves precise coordination of horizontal motion and vertical lifting, often powered by hydraulic power or compressed air, to ensure smooth part release.
A well-designed cam system can control the lifter’s angled movement, allowing the lifter to push internal features and release complex internal undercuts effectively.
Additionally, lifters are essential for managing external undercuts that standard ejector pins cannot handle.
Frequently Asked Questions
What Is The Difference Between Injection Molding Lifters And Ejector Pins In The Ejection Process?
Injection molding lifters are designed to release complex internal undercuts by moving at an angle, while ejector pins provide straightforward vertical ejection of molded parts from the mold cavity.
What Are The Key Differences Between Injection Molding Sliders And Injection Molding Lifters In Handling Complex Part Geometries?
Injection molding sliders move horizontally to release external undercuts, while injection molding lifters move at an angle to release internal undercuts and complex internal features.
How Does Proper Placement And Alignment Of Lifters Impact The Injection Molding Process?
Proper placement and alignment of lifters are crucial for facilitating smooth part ejection and minimizing defects during the injection molding process. This strategic approach effectively handles complex geometries, ensuring higher quality outcomes.
What Is The Relationship Between The Ejector System And The Cam System In The Operation Of An Injection Molding Lifter?
The ejector system activates the lifter mechanism, while the cam system controls the angled movement of the lifter rod, working together to smoothly release complex internal features during the injection molding process.
What Role Do Lifters Play In The Injection Molding Process?
Lifters play a critical role in the injection molding process by aiding in the ejection of complex molded parts, which ultimately enhances both manufacturing speed and product quality.
