Magnet injection molding is a cutting-edge manufacturing process that combines magnetic powders with polymer binders to create custom magnets with complex shapes and precise dimensions.
From simple to very complex shapes, magnet injection molding is revolutionizing industries by enabling the efficient and cost-effective manufacturing of high-performance bonded magnets.
In this article, we will explore the key aspects of the magnet injection molding, including the precautions, advantages, and the applications.
What Is Magnet Injection Molding?

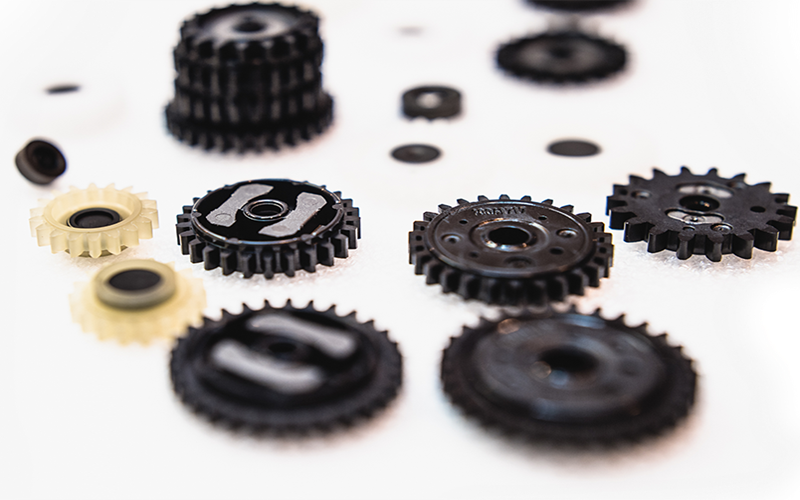

Magnet injection molding is an advanced manufacturing technique used to create injection molded magnets by blending magnetic materials with binders and injecting them into molds.
In this process, magnetic materials such as ferrite or NdFeB powders are combined with a non-magnetic polymer or elastomer binder.
By injecting a molten mixture of these magnetic materials and binder into precisely machined molds, manufacturers can create an injection molded magnet tailored to specific applications.
Magnet injection molding is widely valued for its ability to produce high volumes of consistent, complex-shaped magnets that meet critical dimensions and stringent quality standards.
How Magnets Injection Molding Works？

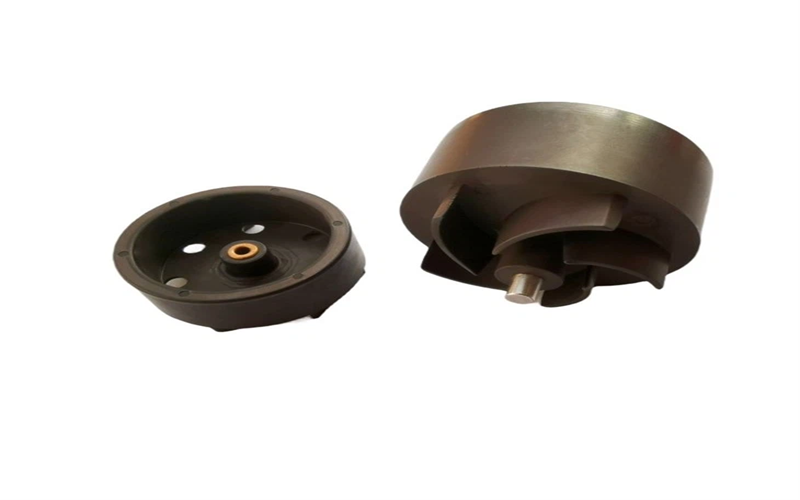

Magnet injection molding processing works by blending magnetic powder with a plastic or elastomer binder, typically a non-magnetic polymer or elastomer, to create a homogeneous molten compound.
This compound is then injected under high pressure into precisely machined mold cavities, and after cooling, the magnets conform dimensionally to the mold cavity.
An important characteristic of this process is the ability to achieve close tolerances and typical tolerances, with closer tolerances possible for critical dimensions.
The finished product exhibits minimal dimensional variability due to precise processing and controlled cooling. The surface of the magnet can be overmolded onto other components if required.
Temperature characteristics maximum and maximum operating temperature depend on both the magnetic alloy powder and the polymer binder used, as exceeding these limits can result in significant irreversible magnetic loss, especially for the highest energy NdFeB grade magnets.
Precautions For The Injection Molding Magnet Process
When working with magnet injection molding, several important precautions must be observed to ensure optimal quality and performance of the final product.
Careful process planning can also reduce or eliminate the need for additional assembly steps by integrating features directly during magnet injection molding.
Material Selection
Choosing the right combination of magnetic powder, such as neodymium iron boron or ferrite powders, is critical; intrinsic coercivity is an important property to consider when selecting magnetic materials for applications requiring resistance to demagnetization.
The materials must be compatible and able to withstand the maximum use temperature without degrading magnetic properties.
Temperature Control
Maintaining precise temperatures during the injection molding process is essential.
Exceeding the maximum operating temperature can cause significant irreversible magnetic loss, especially in high-energy NdFeB grade magnets.
Different magnetic materials and binders have specific maximum use temperatures, which should be verified and tested satisfactorily for the intended application.
Mold Design
The mold cavities must be precisely machined to achieve tight tolerances and minimal dimensional variability.
Mold design may also need to accommodate hybrid versions of magnets, which combine different magnetic materials such as NdFeB, SmCo, Alnico, and Ferrite for versatile applications.
Proper mold design contributes to the physical strength of the finished magnet by ensuring uniform material distribution and minimizing defects.
Magnetic Orientation
Some magnets require magnetic orientation during or after molding to optimize magnetic properties, and the function of the magnet in its application may depend on achieving the correct orientation.
Advantages Of Magnet Injection Molding
Magnet injection molding offers several significant advantages that make it a preferred choice for manufacturing custom magnets.
Injection molded magnets have become integral to the success of many high-tech industries due to their precision and versatility.
Complex Shape Capability

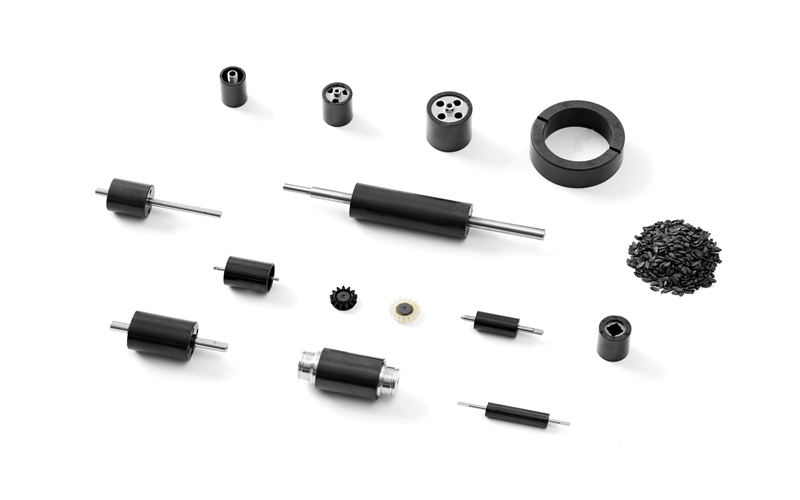

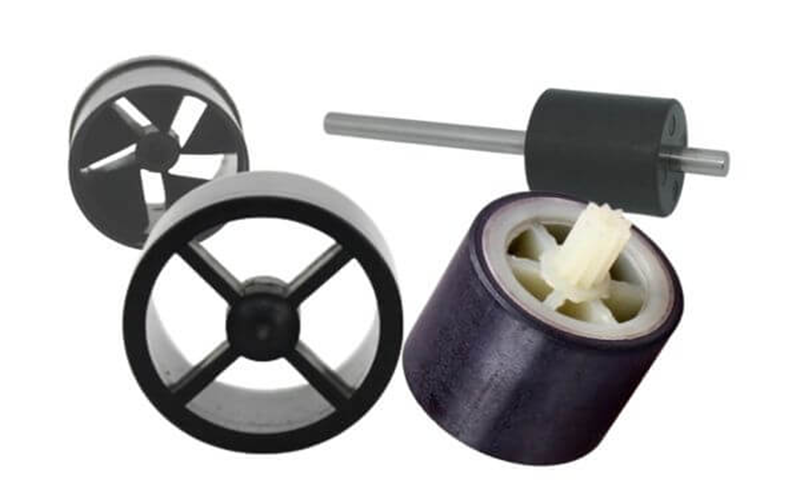

One of the standout advantages of magnet injection molding is its ability to produce magnets in both very simple shapes and highly complex shapes with exceptional precision.
This process allows manufacturers to create intricate designs that would be difficult or impossible to achieve with traditional magnet manufacturing methods.
High Volume Production Efficiency
Magnet injection molding excels in high volume production, enabling manufacturers to produce large quantities of custom magnets quickly and consistently.
The injection molding process allows for rapid cycle times and repeatable precision, reducing waste and lowering overall production costs.
Material Versatility
Magnet injection molding offers exceptional material versatility by allowing a wide range of magnetic powders and polymer binders to be combined.
This versatility enables manufacturers to tailor the magnetic and physical properties of the final product to meet specific performance requirements, environmental conditions, and cost considerations.
Disadvantages Of Magnet Injection Molding
While magnet injection molding offers many benefits, it also has some disadvantages to consider.
Important limitations, such as maximum use temperature and other key properties, are typically listed on the product’s specification sheet.
Temperature Sensitivity
Temperature sensitivity is a critical factor in magnet injection molding, as the polymer binder used in the process inherently limits the maximum use temperature of the molded magnets.
Exceeding this maximum operating temperature can lead to degradation of the magnetic properties, resulting in significant irreversible magnetic loss.
This effect is especially pronounced in the highest energy neodymium iron boron (NdFeB) grade magnets, which are particularly susceptible to heat damage.
Dimensional Variability
Although magnet injection molding achieves tight tolerances due to the precision of mold cavities, some dimensional variability is inevitable.
This variability primarily results from the shrinkage of the polymer binder as it cools and solidifies within the mold.
Factors such as part thickness, shape complexity, and the type of polymer binder used can influence the degree of shrinkage.
Applications Of Magnet Injection Molded Parts
Magnet injection molded parts are widely used across various industries due to their versatility and performance advantages.
Automotive Industry
The automotive industry greatly benefits from magnet injection molding due to the demand for high-performance, durable, and precisely shaped magnets used in electric motors, sensors, and hybrid vehicle systems.
Injection molded magnets enable manufacturers to produce custom magnets that fit complex geometries required in modern automotive components while maintaining tight tolerances and consistent magnetic properties.
Electronics
Injection molded magnets play a vital role in the electronics industry, where precision and reliability are paramount.
An example of a specific application is the use of magnet injection molded parts in electric motors and sensors, where their unique properties are essential for efficient operation.
Medical Devices
Injection molded magnets are essential in the medical device industry, where precision, reliability, and stability are paramount.
These custom magnets are used in critical components such as MRI machines, surgical instruments, pacemakers, and other advanced medical equipment.
Aerospace
In the aerospace industry, injection molded magnets are indispensable due to their ability to meet stringent performance and reliability standards.
These custom magnets are used in critical components such as sensors, actuators, and control systems, where precise magnetic properties and tight tolerances are essential for ensuring safety and optimal functionality.
Innovations And Trends In Magnet Injection Molding
The field of magnet injection molding is continuously evolving, driven by advancements in materials science and manufacturing technologies.
Recent innovations focus on enhancing the magnetic properties and mechanical strength of injection molded magnets by developing new magnetic powders and polymer binders with improved temperature resistance.

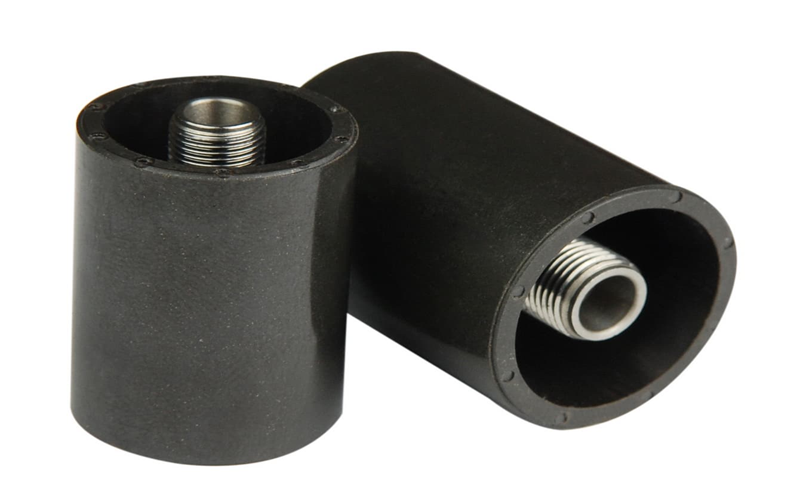

Additionally, the integration of multi-material injection molding techniques allows for the creation of magnets with complex geometries and embedded functionalities, such as overmolding and insert molding.
Trends also highlight the increasing adoption of environmentally friendly and recyclable materials in the injection molding process, aligning with global sustainability goals.
These innovations collectively expand the application potential of magnet injection molding across industries such as automotive, aerospace, electronics, and medical devices.
Conclusion
Magnet injection molding is a transformative manufacturing process that combines precision, versatility, and efficiency to produce high-quality custom magnets.
By blending magnetic powders with polymer binders and utilizing advanced injection molding techniques, manufacturers can create magnets in complex shapes with tight tolerances and consistent magnetic properties.
Despite some challenges such as temperature sensitivity and dimensional variability, the benefits of this process—including high-volume production capability, material versatility, and design flexibility—make it indispensable across industries like automotive, electronics, medical devices, and aerospace.
As innovations continue to enhance material performance and sustainability, magnet injection molding will remain at the forefront of magnetic component manufacturing, driving advancements in technology and application possibilities.
