PETG injection molding is a highly versatile and widely adopted manufacturing process known for producing clear, tough, and durable plastic components.
PETG’s unique properties are enabling a wide range of applications and efficient manufacturing processes in injection molding.
This article explores the key aspects of PETG injection molding, including its material characteristics, processing conditions, advantages, and common applications, providing a comprehensive overview for industry professionals and enthusiasts alike.
What Is PETG?
PETG, or glycol-modified polyethylene terephthalate, is a type of polyester and a member of the glycol modified pets family of copolyesters widely used in injection molding due to its excellent physical properties.
This structure is amorphous, and the addition of a second glycol during polymerization results in an irregular molecular structure, which contributes to PETG’s clarity, toughness, and processing flexibility, resulting in greater clarity, toughness, and flexibility compared to conventional pets.
PETG’s desirable combination of attributes makes it ideal for common applications such as packaging, medical devices, lighting fixtures, and various consumer products.
What Are The PETG Material Properties?
Understanding the key material properties of PETG is crucial for optimizing its performance in injection molding applications and ensuring the production of high-quality plastic products.
Transparency
PETG is renowned for its exceptional transparency, which rivals that of glass.
This clarity is a result of its unique resulting molecular structure formed by the addition of a second glycol during polymerization.
Unlike conventional PET, PETG remains clear and free from haze, making it highly desirable for applications where visual appeal and product visibility are critical, such as packaging, display cases, and displays.
Impact Resistance
PETG injection molding produces parts with excellent impact resistance, making it a preferred choice for applications requiring durability and toughness.
This superior impact resistance is especially valuable in industries such as packaging, medical devices, and lighting fixtures, where products must withstand handling and transportation without damage.
Compared to conventional PET, PETG offers a good combination of strength and flexibility, ensuring longer-lasting and more reliable components in various manufacturing applications.
Melt Temperature
The melt temperature for PETG injection molding typically ranges between 220°C and 290°C, depending on the specific grade of the material.
Maintaining the correct melt temperature is critical to ensure proper flow and injection of the molten plastic into the mold.
Operating within this temperature range helps achieve optimal clarity, toughness, and dimensional stability in the final product.
Chemical Resistance
PETG offers excellent chemical resistance, which enhances its suitability for a wide range of industrial and consumer applications.
This resistance helps PETG parts withstand exposure to common chemicals such as acids, alkalis, and alcohols without degrading or losing their physical properties.
The chemical stability of PETG makes it a reliable choice for packaging materials, medical devices, and other products that may come into contact with various substances during use.
The Advantages Of Using Injection Molded PETG
Injection molded PETG offers several key advantages that it can offer to manufacturers, making it a preferred material in various industries.
Wide Processing Range
PETG injection molding benefits from a wide processing range, which allows manufacturers to adjust parameters such as melt temperature and mold temperature to suit different grades and applications.
The ability to process PETG over a broad temperature range also supports efficient production cycles and consistent product quality, making it ideal for diverse industries including packaging, medical devices, and lighting fixtures.
Ease Of Fabrication
PETG is highly valued for its ease of fabrication, making it a versatile choice in injection molding and other manufacturing processes.
Its excellent thermoformability allows it to be easily shaped and molded into complex designs without compromising structural integrity.
Additionally, PETG can be efficiently cut, drilled, and welded using common fabrication techniques such as laser cutting and CNC machining.
Recyclability
PETG is highly recyclable, making it an environmentally friendly choice for manufacturers focused on sustainability.
Its ability to be recycled without significant degradation in quality helps reduce plastic waste and supports circular economy initiatives.
Recycling PETG prior to injection molding also helps lower production costs by reusing material, while maintaining the desirable physical properties of the final product.
The Disadvantages Of Using Injection Molded PETG
While PETG injection molding offers many benefits, there are some disadvantages to consider.
Moisture Sensitivity
PETG is highly sensitive to moisture, which makes proper drying before injection molding a critical step in the manufacturing process.
If the moisture level in PETG resin is not adequately reduced—typically below 0.04%—it can lead to defects such as bubbles, voids, or poor surface finish in the molded parts.
Cost Considerations
PETG resin typically comes at a higher price point compared to conventional PET and other plastics, such as polypropylene.
This increased material cost can influence the overall production budget. Manufacturers should weigh these factors carefully to optimize both performance and cost-efficiency in their injection molding projects, as careful cost analysis is essential for any injection molding project.
Conditions For PETG Injection Molding Process
Understanding the precise conditions required for PETG injection molding is essential to achieving high-quality, defect-free products.
Drying Requirements
Prior to injection molding, PETG resin must be thoroughly dried to reduce the moisture level below 0.04%.
This step is essential to prevent defects such as bubbles and poor surface finish. The recommended drying temperature is approximately 65°C (149°F), with a drying duration of around 4 hours.
Melt Temperature
The melt temperature range for PETG typically falls between 220°C and 290°C, depending on the specific material grade.
Maintaining the proper melt temperature ensures optimal flow characteristics, clarity, and toughness of the molded parts.
Mold Temperature
The mold temperature should be controlled between 10°C and 30°C, with an ideal setting around 15°C. Proper mold temperature helps achieve dimensional stability and prevents warping or shrinkage during cooling.
Injection Pressure And Speed
Injection pressure generally ranges from 30 MPa to 130 MPa. High injection speeds are recommended to fill the mold efficiently without causing embrittlement or defects in the final product.
Applications Of PETG Molded Parts
PETG is a strong material, making it suitable for demanding applications where durability and impact resistance are important.
Manufacturers with expertise in PETG injection molding can offer tailored support and high-quality solutions for these demanding applications.
Packaging
PETG injection molding is widely favored in the packaging industry due to its exceptional clarity and toughness.
The material’s chemical resistance also makes it suitable for packaging food and beverage products, maintaining product safety and freshness.

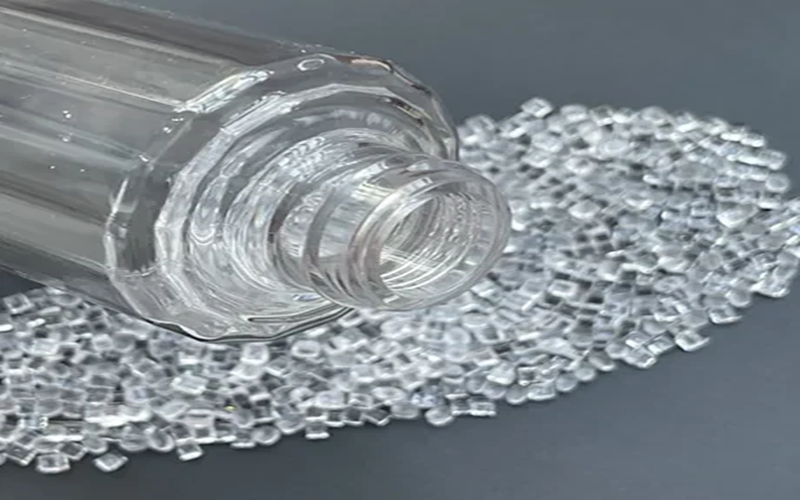

PETG is commonly used to manufacture bottles because its clarity and toughness make it ideal for showcasing and protecting beverages and other liquids. Additionally, PETG bottles are softer and more pliable than those made from traditional PET, making them more comfortable to grip.

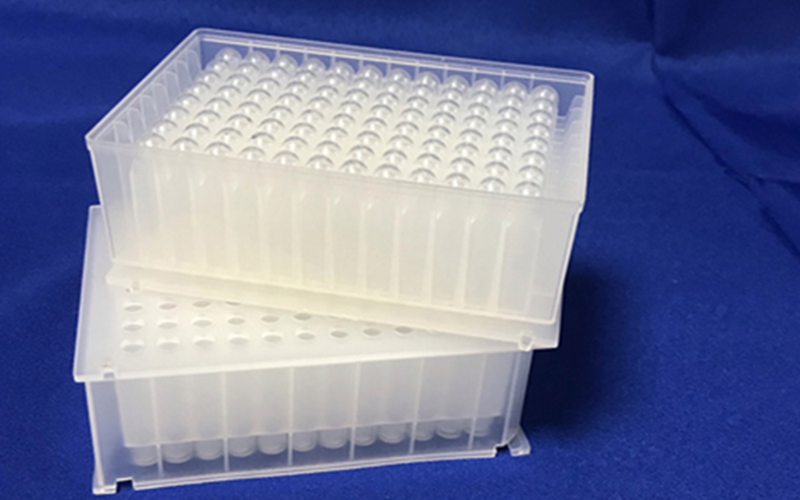

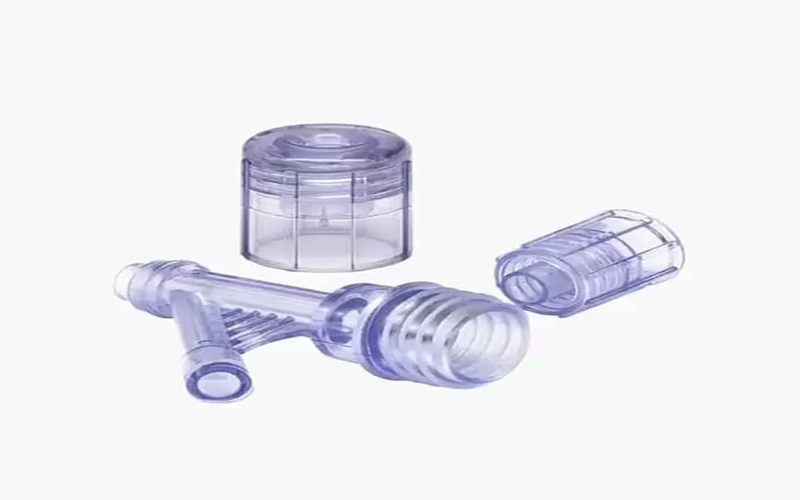

Medical Devices
PETG injection molding is extensively used in the medical industry due to its excellent chemical resistance, clarity, and ease of sterilization.
These properties make PETG an ideal material for manufacturing various medical devices such as test tubes, containers, face shields, and protective equipment.
Its toughness and dimensional stability ensure the durability and reliability required for medical applications, while its ability to be sterilized without degradation supports stringent hygiene standards.
Lighting Fixtures
PETG injection molding is an excellent choice for lighting fixture components due to its outstanding optical clarity and durability.
The material’s transparency allows for efficient light transmission, making it ideal for use in lenses, covers, and diffusers.
Additionally, PETG’s toughness ensures that lighting fixtures can withstand impacts and environmental stress without cracking or yellowing over time.
Industrial Uses
PETG injection molding is widely utilized in various industrial applications due to its excellent physical properties and versatility.
The material’s toughness, chemical resistance, and dimensional stability make it ideal for manufacturing durable components such as protective covers, machine guards, and equipment housings.
Its ability to be injected with precision allows for the production of complex parts that meet stringent industrial standards.
Conclusion
PETG injection molding stands out as a versatile and reliable manufacturing process, offering a desirable combination of clarity, toughness, and stiffness.
Additionally, PETG injection molding can accommodate the use of inserts, such as threaded metal components, which can be embedded during the molding process to enhance the functionality of the molded parts.
Modern manufacturing strategies and standards, such as JIT, EDI, FIFO, and lean manufacturing, are present in PETG injection molding processes to meet evolving industry requirements.
With its wide processing range and recyclability, PETG is increasingly favored across industries like packaging, medical devices, lighting fixtures, and industrial applications.
Understanding the glass transition temperature and other critical physical properties PETGs enables manufacturers to harness the full potential of this glycol modified PET in injection molding, ensuring high-quality, durable plastic products that meet diverse market demands.
