Water Assisted Injection Molding (WAIM) is an advanced manufacturing process that involves injecting high-pressure water into a partially filled mold cavity to create hollow or partly hollow plastic parts.
This guide aims to provide a comprehensive overview of WAIM, detailing its process steps, benefits, and diverse applications, helping manufacturers understand how to leverage this technology for optimal results.
What Is Water Assisted Injection Molding?
Water Assisted Injection Molding, also known as Water Injection Technology, is an innovative plastic injection molding process where high-pressure water is injected into a mold cavity that has been partially filled with molten plastic.

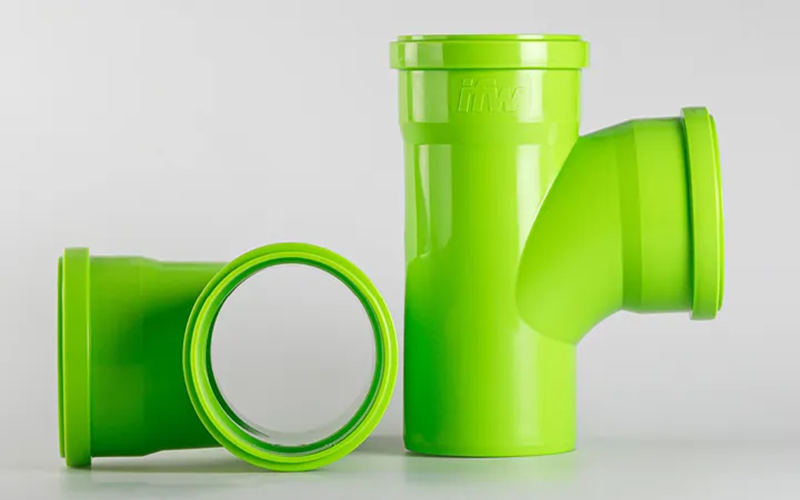

The use of water pressure in this method allows for the production of lightweight, strong plastic parts with uniform wall thickness, such as water pipes and door handles.
Additionally, WAIM helps in reducing clamping force requirements and means material savings, making it a cost-effective and environmentally friendly manufacturing solution.
Water Assisted Injection Molding Process
The water assisted injection molding process begins with injecting molten plastic (melt) into a mold cavity, which is only partially filled at this stage.
High-pressure water is then injected into the cavity, flowing through the melt to create a hollow or partly hollow part.
This water forms a solid interface at the front end, acting like a squeezing hammer that pushes the melt outward against the mold walls.
The incompressibility and higher viscosity of water compared to gas ensure a more uniform wall thickness and reduce common defects such as sink marks and warping.
Additionally, the excellent thermal conductivity and heat capacity of water enable rapid cooling from both the inside and outside of the part, significantly shortening the cooling time and overall cycle time.
This process is particularly suitable for manufacturing complex, thick-walled, or large-diameter plastic parts, offering several advantages over traditional gas assisted injection molding methods.

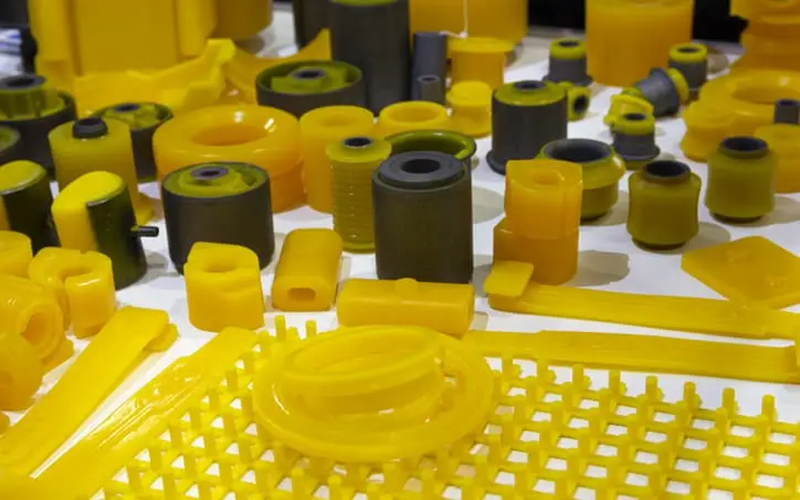

Selection Materials For Water Assisted Injection Molding
Choosing the right materials is essential for maximizing the benefits and efficiency of water assisted injection molding, as different polymers respond uniquely to the process conditions and influence the final part quality.
Polyamide (Nylon)
Polyamide, commonly known as Nylon, is one of the most widely used materials in water assisted injection molding due to its outstanding mechanical strength, chemical resistance, and thermal stability.
Modified polyamide grades with slower crystallization rates are especially favored as they prevent premature solidification during the molding process, reducing defects and ensuring smooth flow of the melt filled mold cavity.
These materials benefit from water assisted injection molding’s rapid cooling efficiency and excellent process control, which help produce parts with uniform wall thickness and minimal sink marks.
Polypropylene (PP)
Polypropylene is a versatile thermoplastic widely used in water assisted injection molding due to its excellent chemical resistance, low density, and good processability.
PP’s ability to flow smoothly into the mold cavity and its compatibility with high-pressure water injection make it an ideal choice for producing lightweight, hollow parts with uniform wall thickness.
Additionally, PP benefits from the rapid cooling efficiency provided by water assisted injection molding, which reduces cycle times and improves dimensional stability.
Acrylonitrile Butadiene Styrene (ABS)
Acrylonitrile Butadiene Styrene is a popular thermoplastic polymer known for its excellent impact resistance, toughness, and good surface finish, making it suitable for water assisted injection molding.
ABS performs well under the rapid cooling efficiency provided by water injection technology, which helps reduce cycle times and improves dimensional accuracy.
Its compatibility with high-pressure water injection allows for the production of hollow or partly hollow parts with uniform wall thickness, enhancing material savings and reducing defects such as sink marks and warping.
Polybutylene Terephthalate (PBT)
Polybutylene Terephthalate is a highly durable and versatile engineering thermoplastic widely used in water assisted injection molding.
Its excellent mechanical properties, including high strength, good dimensional stability, and resistance to chemicals and heat, make it an ideal choice for producing complex, partly hollow parts with consistent quality.
PBT’s compatibility with water injection technology allows for rapid cooling efficiency, which significantly reduces cycle times and enhances process control.
Benefits Of Water Assisted Injection Molding
Water assisted injection molding offers several significant benefits that make it an attractive choice for manufacturers seeking efficiency and quality in plastic part production.
Material Savings
Water assisted injection molding significantly contributes to material savings by enabling the production of hollow or partly hollow plastic parts.
This reduction in material usage not only lowers manufacturing costs but also minimizes waste, making the process more environmentally friendly.
By optimizing the use of plastic within the mold cavity, manufacturers can achieve lightweight yet strong components without compromising structural integrity.
Rapid Cooling Efficiency
One of the standout advantages of water assisted injection molding is its rapid cooling efficiency. Water’s thermal conductivity is approximately 40 times greater than that of nitrogen gas, and its heat capacity is about four times higher.
This means that water can absorb and dissipate heat much more effectively than gas, allowing the molded plastic parts to cool quickly from both the inside and outside surfaces.
This rapid cooling not only shortens the overall cycle time but also minimizes the risk of warping and shrinkage by promoting uniform temperature distribution throughout the mold cavity.
Improved Part Quality
Water assisted injection molding enhances part quality by leveraging the unique properties of water as a pressure medium.
The incompressibility and higher viscosity of water compared to gas create a solid interface that acts as a squeezing hammer, pushing the molten plastic melt outward evenly against the mold cavity walls.
This results in more uniform wall thickness and reduces common molding defects such as sink marks, warping, and other surface artifacts.
Limitations Of Water Assisted Injection Molding
While water assisted injection molding offers numerous advantages, it also has some limitations that manufacturers should consider。
Water Leakage Risk
One of the main challenges in water assisted injection molding is the risk of water leakage during the injection process.
Since high-pressure water is used to displace the molten plastic inside the mold cavity, any imperfections or weaknesses in the mold sealing can lead to leaks.
Water leakage not only compromises the dimensional accuracy and surface quality of the plastic parts but also increases maintenance costs and downtime.
Dewatering Requirement
After the water assisted injection molding process, it is essential to thoroughly dewater the molded parts to remove any residual water trapped inside the hollow or partly hollow sections.
Proper dewatering prevents moisture-related issues such as corrosion, dimensional instability, and surface defects during post-processing or in the final application.
Design Constraints
Although water assisted injection molding offers many benefits, it also imposes specific design constraints that manufacturers must consider.
The necessity of incorporating a continuous water channel within the mold limits design flexibility, particularly for highly intricate or thin-walled parts. This requirement can complicate mold construction and increase tooling costs.
Applications Of Water Assist Injection Molded Parts
Water assisted injection molding is widely used across various industries due to its ability to produce lightweight, strong, and high-quality hollow or partly hollow plastic parts.
Automotive Industry
The automotive industry greatly benefits from water assisted injection molding due to its ability to produce lightweight, durable, and complex parts with excellent surface finish.

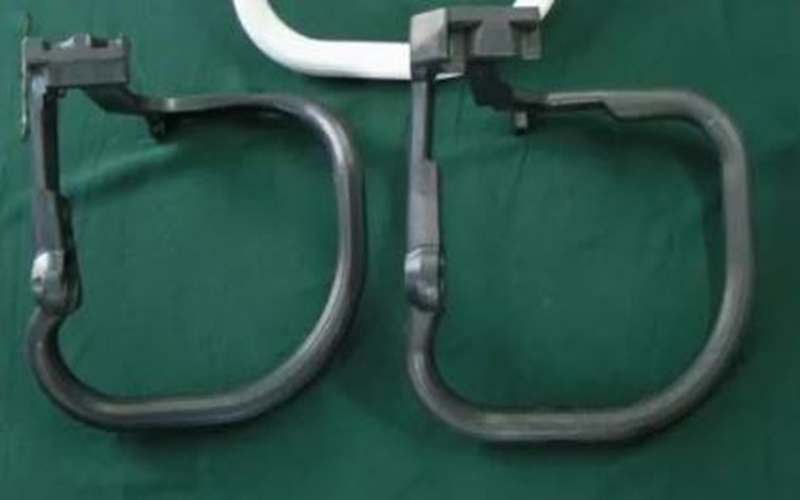

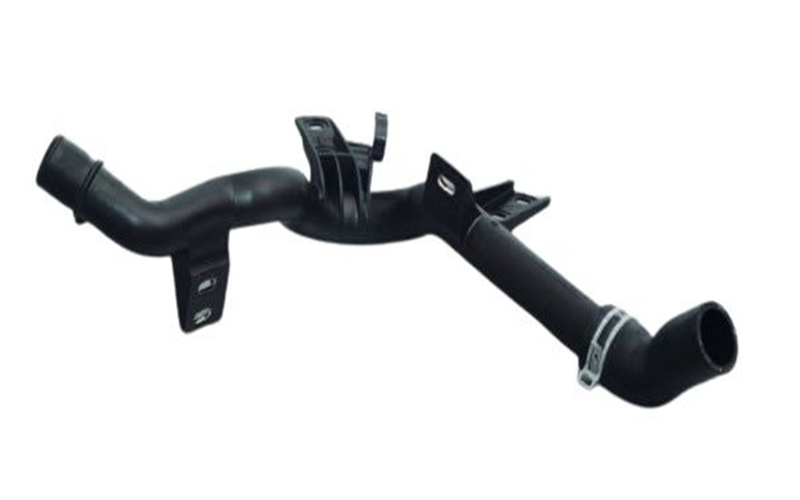

Components such as door handles, rocker covers, and fluid transfer pipes are commonly manufactured using this technology.
The rapid cooling efficiency of water injection technology reduces cycle times and enhances process control, resulting in higher production efficiency.
Industrial Components

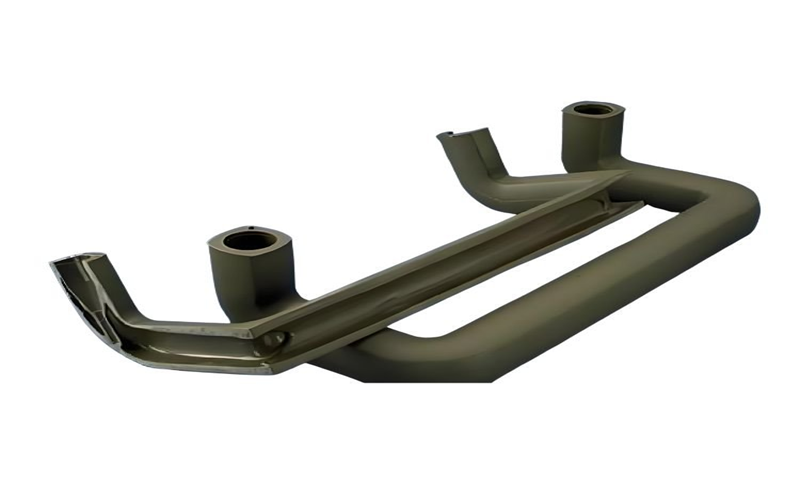

Water assisted injection molding is increasingly utilized in the production of industrial components such as brackets, housings, and protective covers.
These parts require precise dimensional stability and minimal deformation, which is achieved through the uniform cooling and pressure distribution provided by water injection technology.
The process helps in reducing common molding defects like warping and sink marks, ensuring high-quality, durable components suitable for demanding industrial applications.
Medical Devices
Water assisted injection molding is increasingly valuable in the medical device industry, where precision and reliability are paramount.
This process enables the production of hollow or partly hollow medical components with uniform wall thickness, which is critical for maintaining dimensional accuracy and structural integrity.
Applications include components like surgical instrument handles, fluid transfer tubes, and housings for diagnostic equipment, where stringent quality standards and biocompatible materials are essential.
Water Assisted Injection Molding vs Gas Assisted Injection Molding
Water assisted injection molding and gas assisted injection molding are both advanced techniques used to create hollow or partly hollow plastic parts, but they differ significantly in their mechanisms and advantages.
Water’s higher viscosity and incompressibility compared to gas allow it to form a solid interface, acting like a squeezing hammer to push the melt outward uniformly, which results in more consistent wall thickness and reduces common defects such as sink marks and warping.
In contrast, gas assisted injection molding, while effective, generally provides less efficient cooling and can result in less uniform wall thickness due to the compressible nature of gas.
Overall, WAIM offers enhanced product quality and faster production cycles, especially for thick-walled or large diameter parts, but requires careful mold design to prevent water leakage and ensure proper water evacuation, often relying on gravity or compressed air.
Conclusion
Water assisted injection molding represents a significant advancement in plastic manufacturing technology, offering several advantages over traditional gas assisted injection molding.
The main difference between water assisted and gas assisted injection molding lies in water’s incompressibility and higher thermal conductivity, which enable better process control and faster cycle times.
While challenges such as water leakage and dewatering exist, careful mold design and process optimization can effectively mitigate these issues.
Overall, water assisted injection molding is a versatile and efficient method suitable for producing complex, thick-walled, or large-diameter plastic parts across various industries, making it a valuable technology for manufacturers aiming to enhance quality and reduce production costs.
